> Help with 6 heat exchanger mounting brackets
sixaddict
post Jun 14 2025, 09:10 AM
Post #1


Senior Member
***

Group: Members
Posts: 953
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
So finalizing engine details and need a little help with mounting brackets.
This picture shows mounting bracket in place.
Attached Image
The bracket on this side is MIA…maybe
Attached Image
Next is outboard…
Attached ImageAttached Image
Could some post what I should be seeing if correct. Zoom in on last pic and you can see outboard bracket. Trying to also determine where that attaches.
Thanks…..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jun 14 2025, 10:08 AM
Post #2


Advanced Member
****

Group: Members
Posts: 4,147
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
I am not able to help with this, but it looks like things are coming together, keep it going

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnhora
post Jun 14 2025, 11:17 AM
Post #3


Senior Member
***

Group: Members
Posts: 887
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None
TOT...don't think there's a mounting tab on that side..the one on the dr side has the tab that the clamp for attaching the speedo, clutch, and throttle cables is also connected

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnhora
post Jun 14 2025, 11:18 AM
Post #4


Senior Member
***

Group: Members
Posts: 887
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None
here's another pic of OEM HE's

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Jun 14 2025, 12:22 PM
Post #5


Senior Member
***

Group: Members
Posts: 953
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
They are…..we ( builder and I) better known as technician and financier, plan to build engine stand as he would like to hear results of labors plus we can be sure all is well.
Thanks for noticing…
quote name='930cabman' date='Jun 14 2025, 08:08 AM' post='3210205']
I am not able to help with this, but it looks like things are coming together, keep it going

(IMG:style_emoticons/default/beerchug.gif)
[/quote]
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Jun 14 2025, 12:24 PM
Post #6


Senior Member
***

Group: Members
Posts: 953
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
John…
Thanks exactly what I was hoping for…..great pics!
Thank you.
Terry
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fixer34
post Jun 14 2025, 01:33 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,287
Joined: 16-September 14
From: Chicago area
Member No.: 17,908
Region Association: Upper MidWest
Yes, I believe the tab on the one side is to clamp the cables in place, not mount to the case.

On a different note, I see you installed turbo valve covers on the exhausts. If you ever plan to check/adjust the valves with the engine in the car (and bolted up) you need to mill/shave some of the fins around a couple bolts. Otherwise they won't clear the trailing arm frame mounts. There are a couple threads about it.
Ask me how I know..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jun 14 2025, 08:49 PM
Post #8


914 Wizard
**********

Group: Members
Posts: 10,895
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Brackets..


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Jun 14 2025, 09:57 PM
Post #9


Advanced Member
****

Group: Members
Posts: 4,855
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(fixer34 @ Jun 15 2025, 07:33 AM) *

Yes, I believe the tab on the one side is to clamp the cables in place, not mount to the case.

On a different note, I see you installed turbo valve covers on the exhausts. If you ever plan to check/adjust the valves with the engine in the car (and bolted up) you need to mill/shave some of the fins around a couple bolts. Otherwise they won't clear the trailing arm frame mounts. There are a couple threads about it.
Ask me how I know..

(IMG:style_emoticons/default/agree.gif) why would want to solid mount to the HX on to the case ? but why it perfectly lines up on that case stub has got me baffled ??? .
Pretty sure OP knows about the lower rocker covers ,cheers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Jun 14 2025, 10:42 PM
Post #10


Advanced Member
****

Group: Members
Posts: 4,855
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
[quote name='porschetub' date='Jun 15 2025, 03:57 PM' post='3210274']
[quote name='fixer34' post='3210221' date='Jun 15 2025, 07:33 AM']
Yes, I believe the tab on the one side is to clamp the cables in place, not mount to the case.

On a different note, I see you installed turbo valve covers on the exhausts. If you ever plan to check/adjust the valves with the engine in the car (and bolted up) you need to mill/shave some of the fins around a couple bolts. Otherwise they won't clear the trailing arm frame mounts. There are a couple threads about it.
Ask me how I know..
[/quote]
(IMG:style_emoticons/default/agree.gif) why would want to solid mount to the HX on to the case ? but why it perfectly lines up on that case stub has got me baffled ??? .
Pretty sure OP knows about the lower rocker covers ,cheers.
Edit ,great pics supplied sixer ,confirms than bracket isn't there in that bunch of tressures you have ?? ,rest look like lower tin fitment ...think so as they are 6mm.
Cheers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 15 2025, 04:34 AM
Post #11


914 Guru
*****

Group: Members
Posts: 7,582
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Terry are you still having the debate on the heat exchangers? Just one tab on that side and then the z bracket on the other side
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Jun 15 2025, 09:33 AM
Post #12


Senior Member
***

Group: Members
Posts: 953
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
QUOTE(mb911 @ Jun 15 2025, 02:34 AM) *

Terry are you still having the debate on the heat exchangers? Just one tab on that side and then the z bracket on the other side

Yes kind of……..not sure I know what you mean on Z bracket….i see a bracket on outboard side and assume it must attach to something.

On valve covers ……will be changed before installing in the car…..but have a set of original look alikes ( SC) that are aluminum and purportedly won’t leak. (IMG:style_emoticons/default/dry.gif) vs magnesium originals. Now to find them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 16 2025, 01:22 PM
Post #13


914 Guru
*****

Group: Members
Posts: 7,582
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(sixnotfour @ Jun 14 2025, 06:49 PM) *

Brackets..


Terry z bracket is on the top in these pictures
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Jun 16 2025, 04:01 PM
Post #14


Senior Member
***

Group: Members
Posts: 953
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
Duh…
Now I get it. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Jun 16 2025, 06:46 PM
Post #15


Advanced Member
****

Group: Members
Posts: 4,855
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(sixaddict @ Jun 16 2025, 03:33 AM) *

QUOTE(mb911 @ Jun 15 2025, 02:34 AM) *

Terry are you still having the debate on the heat exchangers? Just one tab on that side and then the z bracket on the other side

Yes kind of……..not sure I know what you mean on Z bracket….i see a bracket on outboard side and assume it must attach to something.

On valve covers ……will be changed before installing in the car…..but have a set of original look alikes ( SC) that are aluminum and purportedly won’t leak. (IMG:style_emoticons/default/dry.gif) vs magnesium originals. Now to find them.

The mag ones on my motor were very warped ....some clown had installed 2 thick gaskets to stop the leaks then wound them up real tight (IMG:style_emoticons/default/slap.gif) .
Glued some sandpaper on to a sheet of thick glass and resurfaced then which took a lot, refitted them with beaded VR gaskets and they only lasted around 300 miles and started weeping, shortly after they started dripping .
Purchased a set 930 covers , checked them and both benefitted from a resurface but not a lot on one but the other required a fair bit of work , IMO the worst of the 2 would have leaked otherwise.
Cheers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Jun 16 2025, 08:24 PM
Post #16


Advanced Member
****

Group: Members
Posts: 4,762
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
The tab on the passenger box has two functions, it keeps the box from rattling
and provides attachment to keep the cables from drooping.
On the drivers side there is a small leg from the box to the forward exhaust stud
to keep the box from rattling, another bracket on the outside top surface is used with
a Norma hose clamp to keep the oil hose from contacting the heater box.
IT can be seen in 'six addicts' bottom three pics.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Jun 18 2025, 02:54 PM
Post #17


Senior Member
***

Group: Members
Posts: 953
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States

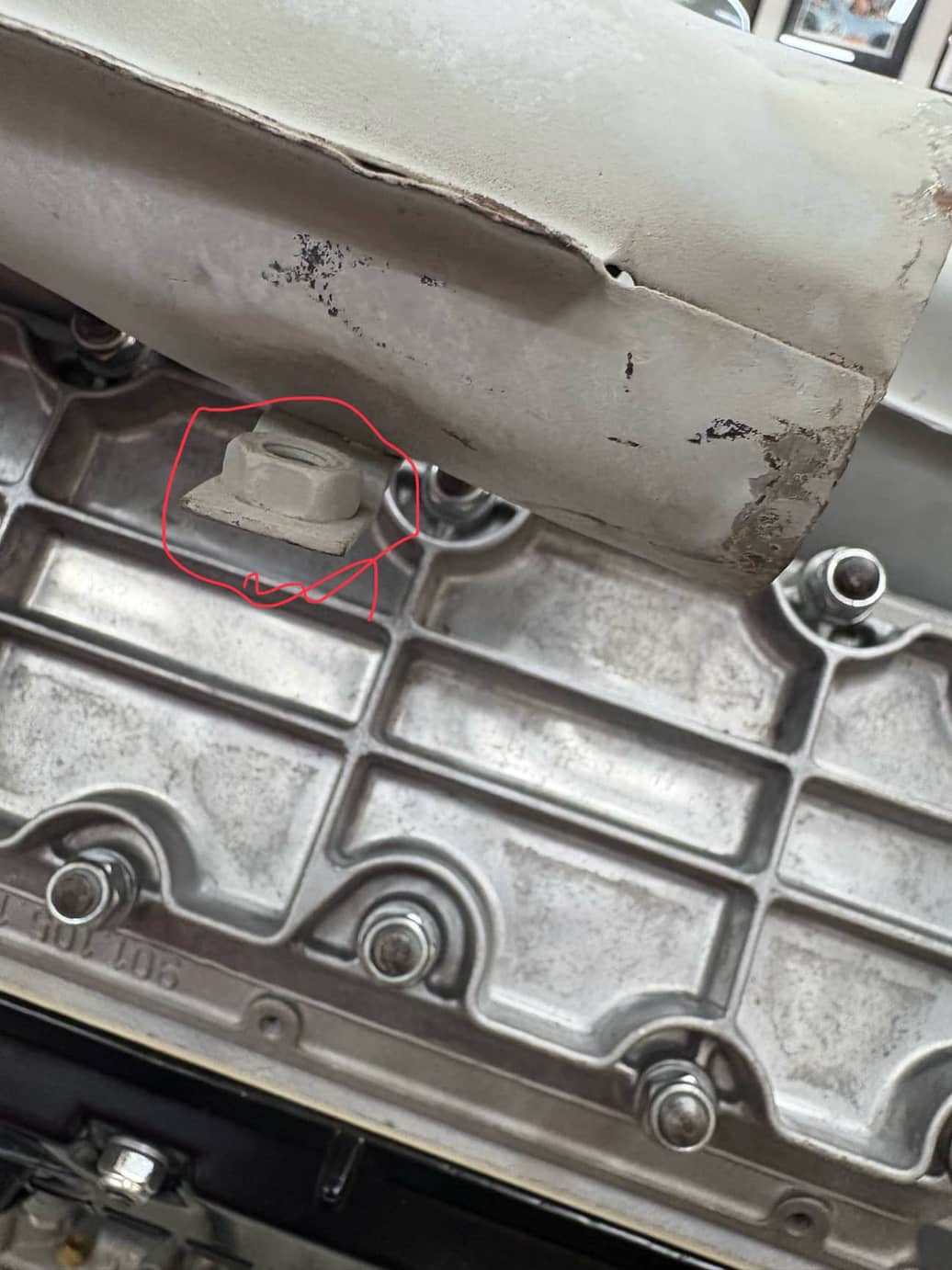

Sorry to belabor this but trying to determine where or what this one attaches to.
Circled in red.
Attached Image
Hoping this is final question.
Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Jun 18 2025, 06:37 PM
Post #18


Advanced Member
****

Group: Members
Posts: 4,762
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
QUOTE(sixaddict @ Jun 18 2025, 04:54 PM) *

Sorry to belabor this but trying to determine where or what this one attaches to.
Circled in red.
Attached Image
Hoping this is final question.
Thanks


Nick
Final answer. (IMG:style_emoticons/default/smile.gif)

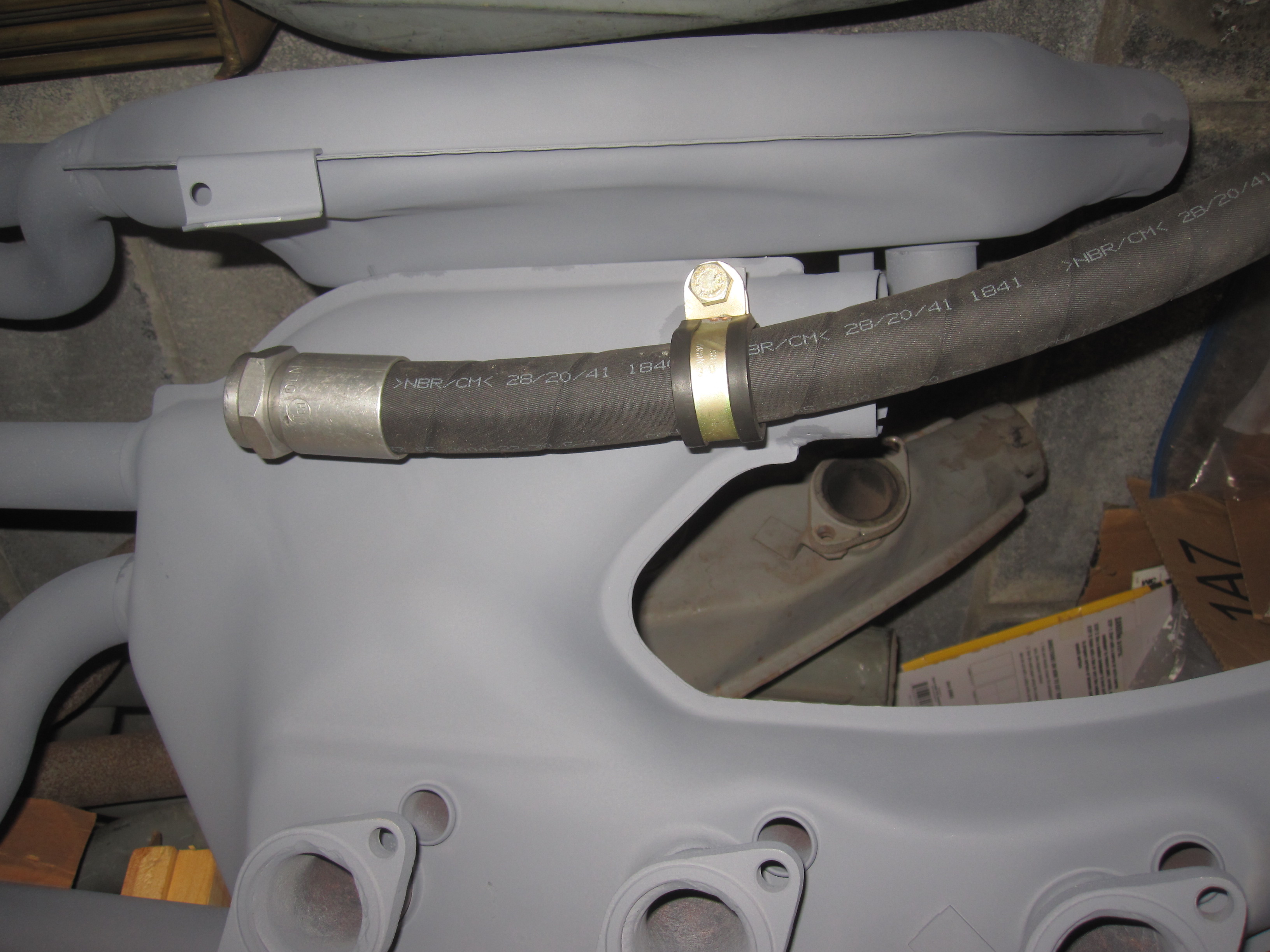

That bracket is on the drivers HE on the top surface of the heater box.
It keeps the oil cooler hose from resting on the heater box. It works with a 30mm
clamp as pictured.
It's the hose that goes from oil cooler to oil tank.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fixer34
post Jun 18 2025, 06:51 PM
Post #19


Senior Member
***

Group: Members
Posts: 1,287
Joined: 16-September 14
From: Chicago area
Member No.: 17,908
Region Association: Upper MidWest

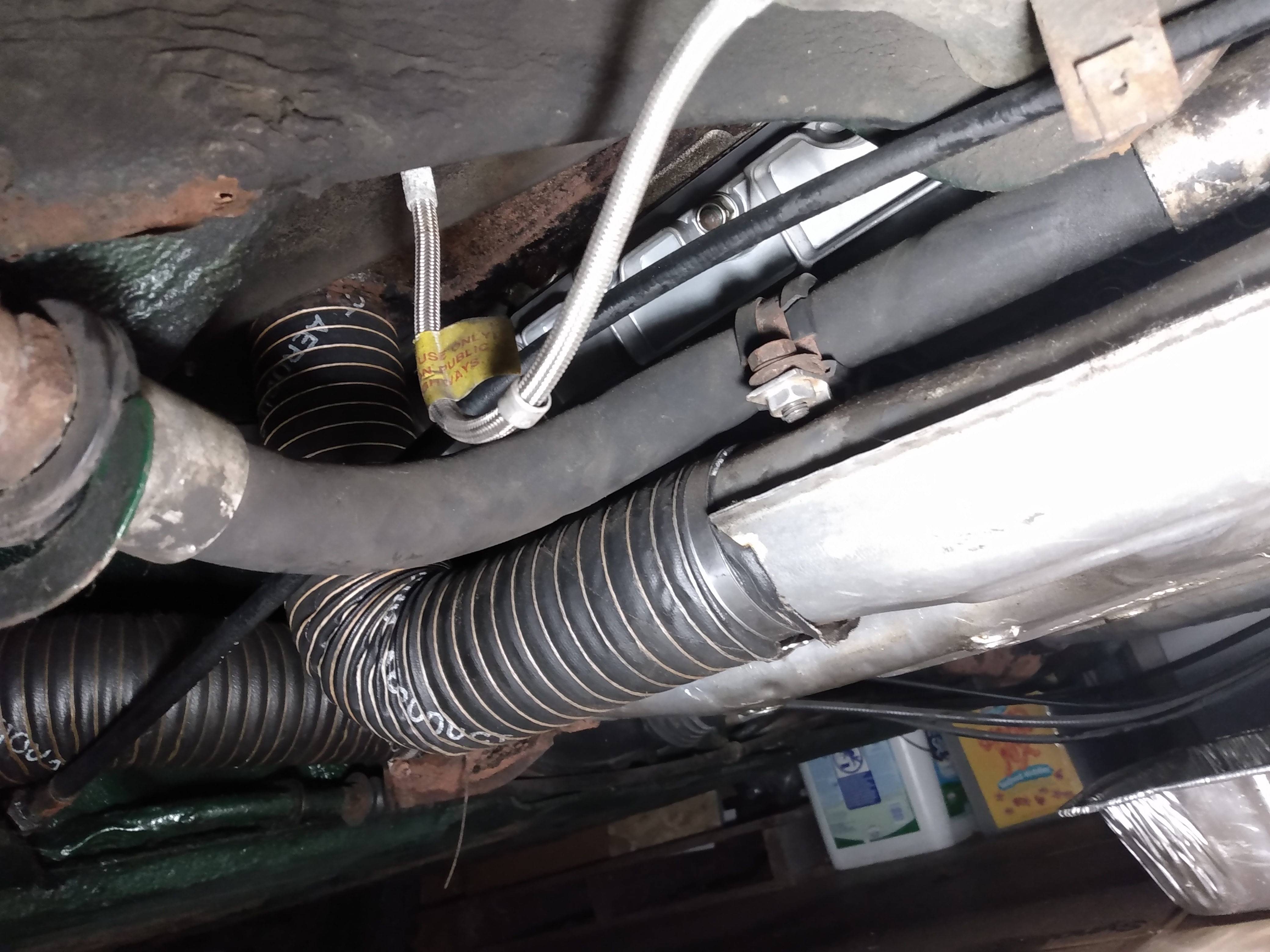

Installed picture..
Attached Image
User is offlineProfile CardPM
