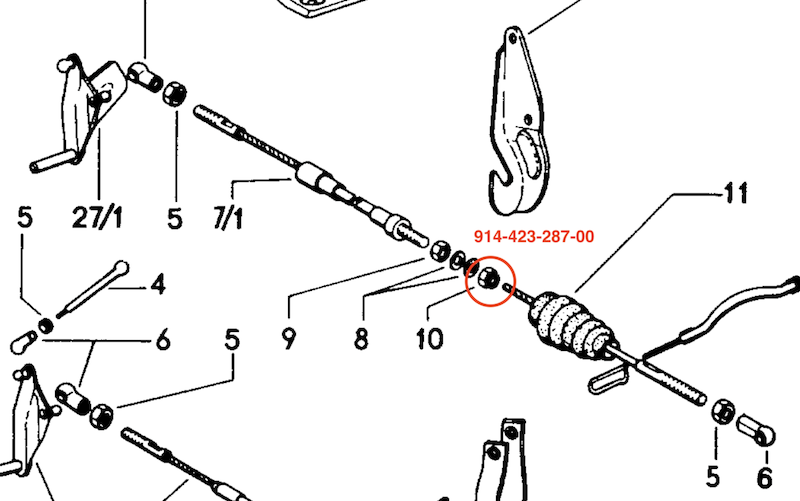

What is special about this jam nut for the accelerator cable? 914-423-287-00
The PDF parts catalog describes it as "hexagon nut", and only lists it under the 914-6 models and it doesn't appear to be used anywhere else on the car. I've of course searched the interwebs. It is NLA and I can't find any photos of it. I assume they gave it a unique part number for a reason... (IMG:style_emoticons/default/confused24.gif)  |
   |

|
| Cfletch |
Sep 8 2025, 10:28 AM
Post
#2
|
|
Member Group: Members Posts: 189 Joined: 30-January 14 From: Santa Barbara Member No.: 16,941 Region Association: Southern California |
I doubt its anything special, I think its just used to lock the sheath to the bracket on the transmission, basically a sandwich. I don't have the stock bracket, but one from Rich Johnson and its the same as the other one on the other side of the bracket. Curious to see if there's actually a need for a separate part number.
|
|
|
|
| ctc911ctc |
Sep 8 2025, 07:10 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,209 Joined: 9-June 18 From: boston Member No.: 22,206 Region Association: North East States
|
914-6, 1970 - all stock and original

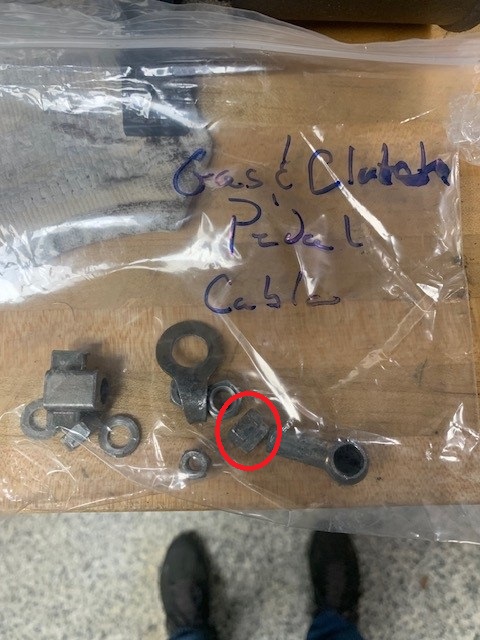

I am getting ready to put the engine back in and I recalled a component that I thought was interesting - here it is:  essentially a wide nut with 1/2 of the nut HEX and the other half is round. |
|
|
|
| DennisV |
Sep 9 2025, 07:55 AM
Post
#4
|
|
Senior Member Group: Members Posts: 715 Joined: 8-August 20 From: Santa Rosa, CA Member No.: 24,575 Region Association: Northern California
|
QUOTE(ctc911ctc @ Sep 8 2025, 06:10 PM)  914-6, 1970 - all stock and original I am getting ready to put the engine back in and I recalled a component that I thought was interesting - here it is: essentially a wide nut with 1/2 of the nut HEX and the other half is round. Good memory! Thanks for sharing. I think that is called a shoulder nut? If you have an opportunity, can you share the dims on the nut? * Size across the flats (ATF)? * Overall length * I assume the inside is M6? |
|
|
|
| ctc911ctc |
Sep 10 2025, 08:24 PM
Post
#5
|
|
Senior Member Group: Members Posts: 1,209 Joined: 9-June 18 From: boston Member No.: 22,206 Region Association: North East States
|

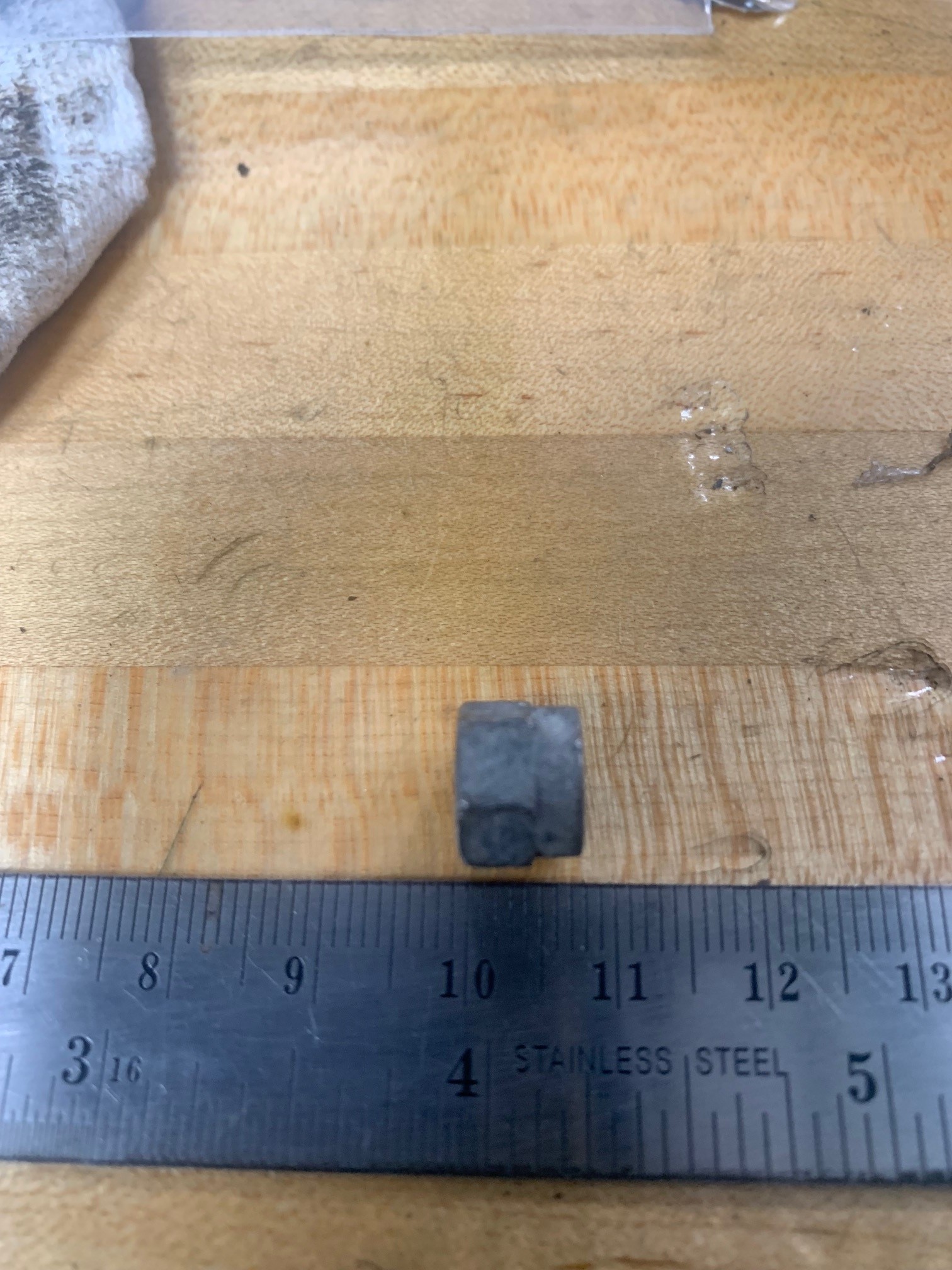

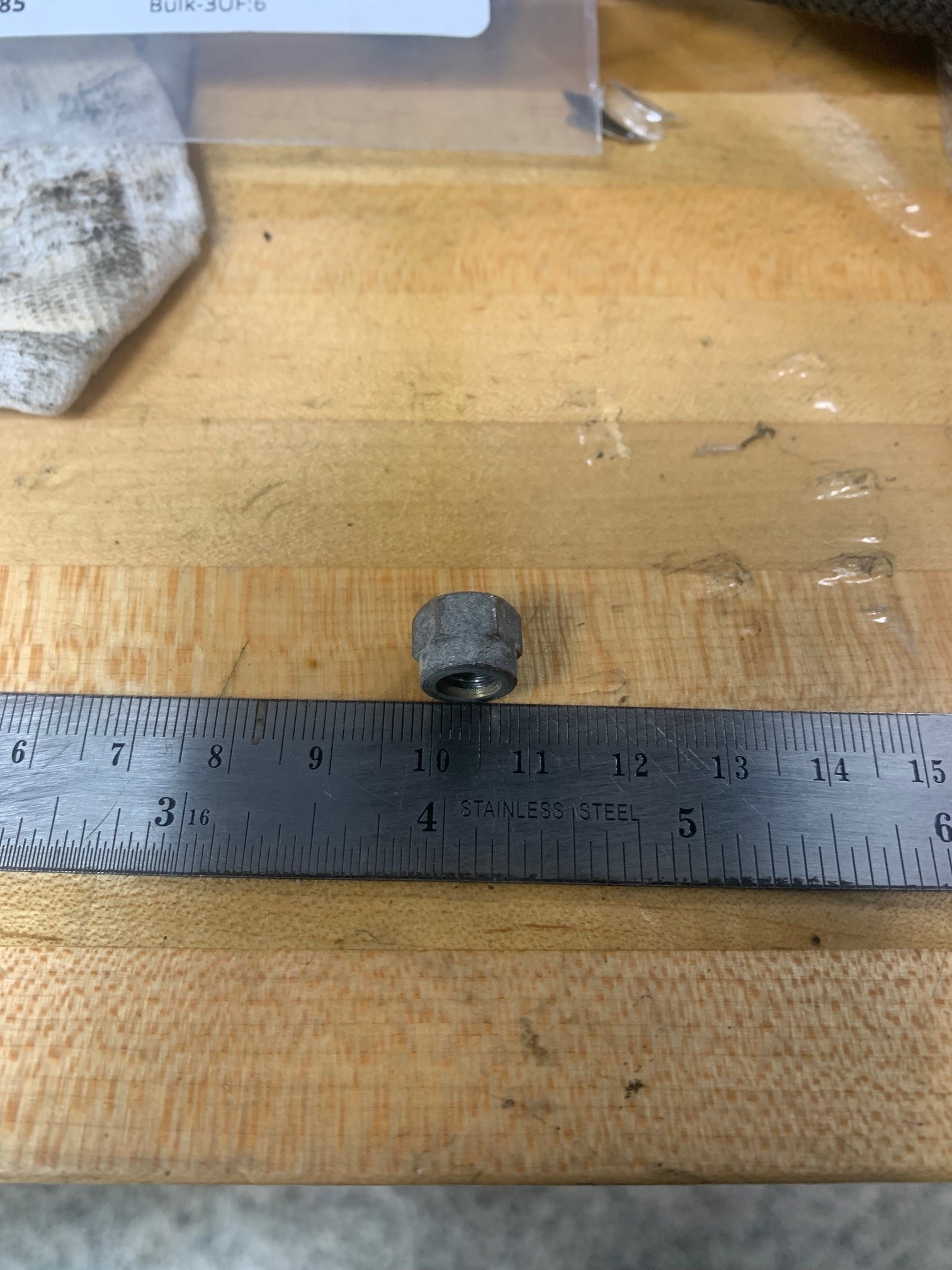

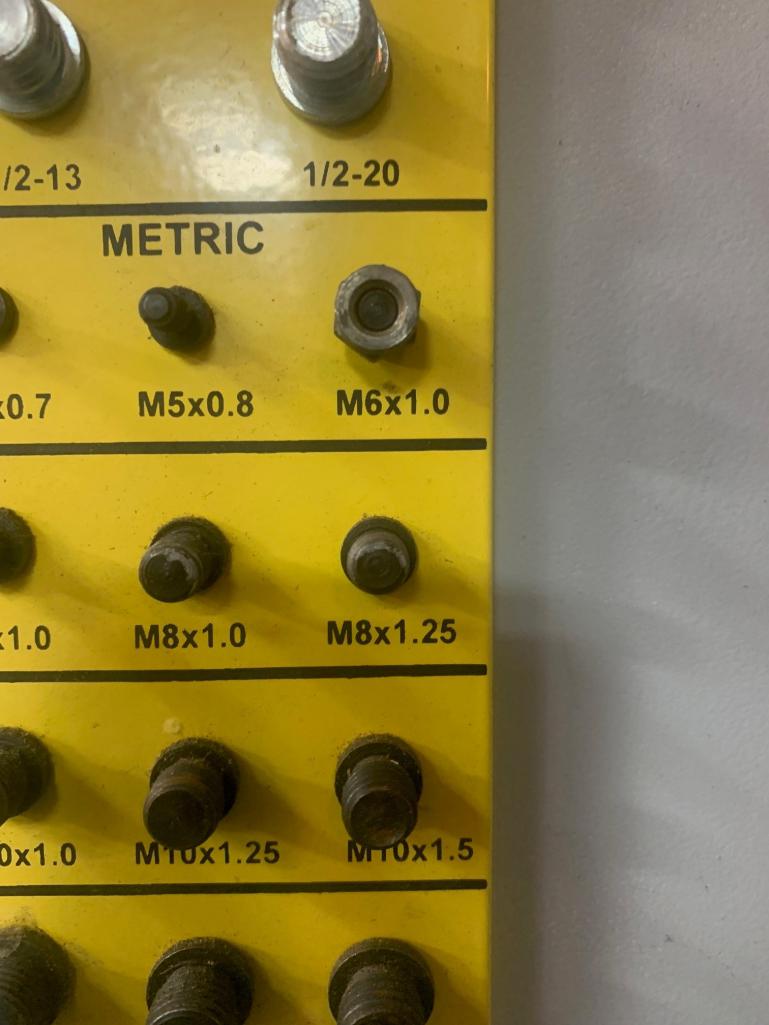

Here is the information about this 'fancy' nut, I seem to remember seeing these before, perhaps this is a standard part?    |
|
|
|
| DennisV |
Sep 11 2025, 06:56 AM
Post
#6
|
|
Senior Member Group: Members Posts: 715 Joined: 8-August 20 From: Santa Rosa, CA Member No.: 24,575 Region Association: Northern California
|
QUOTE(ctc911ctc @ Sep 10 2025, 07:24 PM) Here is the information about this 'fancy' nut, I seem to remember seeing these before, perhaps this is a standard part? That is super helpful! I assume it is 10mm ATF? Can you tell if it is a lock nut or there is anything else "special" about it? I am perplexed, and getting a bit nuts about this nut. (IMG:style_emoticons/default/head_hurts_kr.gif) I will add this to the parts vault if you don't mind me reposting your images. |
|
|
|
| ctc911ctc |
Sep 11 2025, 11:12 AM
Post
#7
|
|
Senior Member Group: Members Posts: 1,209 Joined: 9-June 18 From: boston Member No.: 22,206 Region Association: North East States
|
NOT a lock nut, my files are your files.
QUOTE(DennisV @ Sep 11 2025, 06:56 AM) QUOTE(ctc911ctc @ Sep 10 2025, 07:24 PM) Here is the information about this 'fancy' nut, I seem to remember seeing these before, perhaps this is a standard part? That is super helpful! I assume it is 10mm ATF? Can you tell if it is a lock nut or there is anything else "special" about it? I am perplexed, and getting a bit nuts about this nut. (IMG:style_emoticons/default/head_hurts_kr.gif) I will add this to the parts vault if you don't mind me reposting your images. |
|
|
|
| DennisV |
Sep 12 2025, 09:35 AM
Post
#8
|
|
Senior Member Group: Members Posts: 715 Joined: 8-August 20 From: Santa Rosa, CA Member No.: 24,575 Region Association: Northern California
|

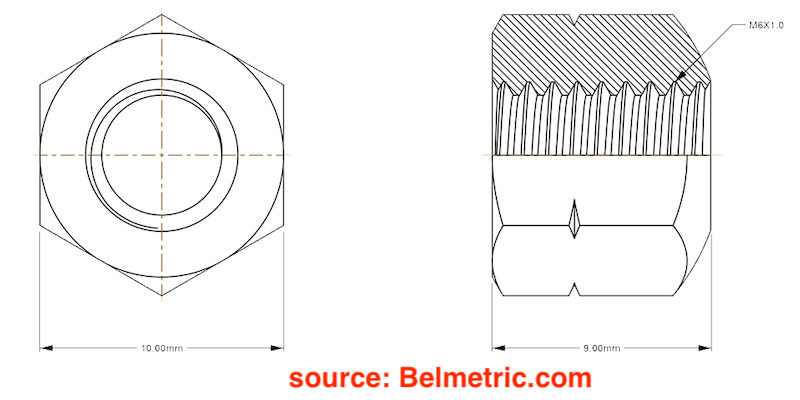

I did a lot of searching for Porsche, VW, and generic parts. Couldn't find anything identical. This Tall Fixture Nut from BelMetric is the closest approximation I could find. It appears to be 1mm taller than your original. I guess one could turn down the hex on half of it to get the collar.
 |
|
|
|
|
