| ctc911ctc |
  Sep 11 2025, 01:30 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 1,209 Joined: 9-June 18 From: boston Member No.: 22,206 Region Association: North East States
 |
On the right side of the car engine compartment - 914-6

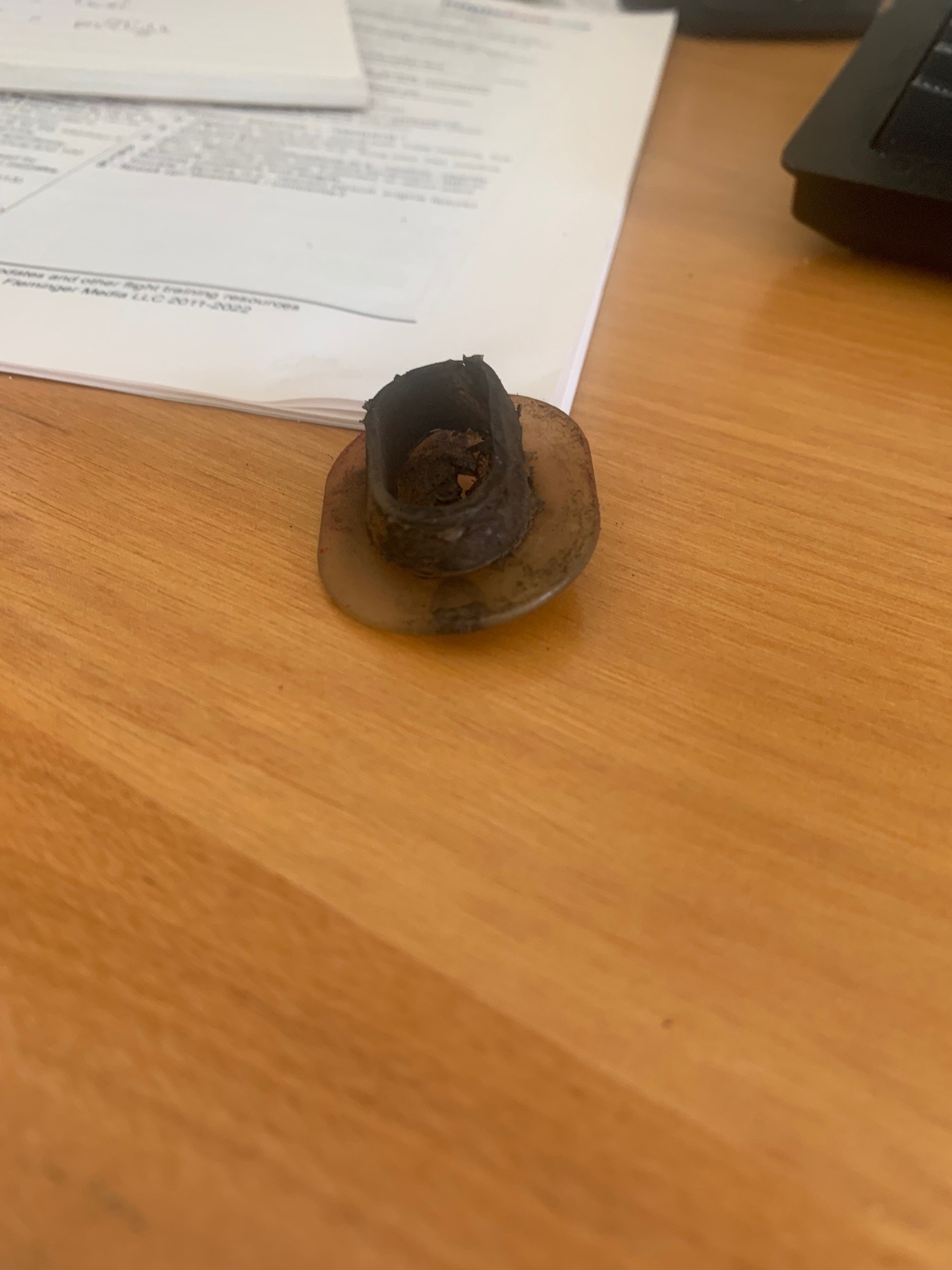

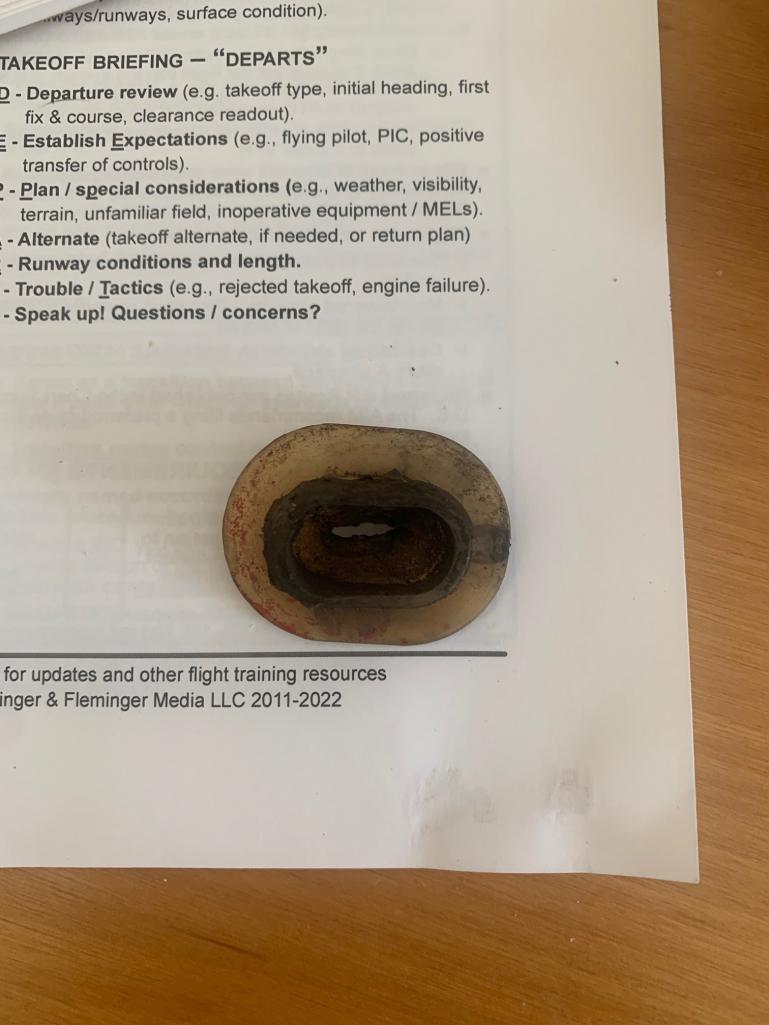

There are two oval holes for the 914-4 FI, one is plugged with this when it is a 914-6 engine. Is this an original part?    |
   |

|
| bdstone914 |
Sep 11 2025, 01:54 PM
Post
#2
|
|
bdstone914 Group: Members Posts: 5,115 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
Can you show where it is in the engine compartment? I can look on my 6.
|
|
|
|
| ctc911ctc |
Sep 11 2025, 02:05 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,209 Joined: 9-June 18 From: boston Member No.: 22,206 Region Association: North East States
|
 |
|
|
|
| SirAndy |
Sep 11 2025, 03:26 PM
Post
#4
|
|
Resident German Group: Admin Posts: 42,316 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
I'm pretty sure that's an original part, i have seen them on quite a few 914s.
(IMG:style_emoticons/default/idea.gif) |
|
|
|
| sixnotfour |
Sep 11 2025, 03:28 PM
Post
#5
|
|
914 Wizard Group: Members Posts: 10,950 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
|
(IMG:style_emoticons/default/agree.gif) -6 no return line..block off plug..
|
 |
|
| Montreal914 |
Sep 11 2025, 03:39 PM
Post
#6
|
|
Senior Member Group: Members Posts: 1,909 Joined: 8-August 10 From: Claremont, CA Member No.: 12,023 Region Association: Southern California
|
With the /6 being carburated, I would assume there is no return line and therefore one of the hole would be capped with this plug? (IMG:style_emoticons/default/confused24.gif)
From the PET diagram, single line and your part (#19). Its description is: Stopper used on 1.8. but also referenced as being used on /6 on AA website.   |
|
|
|
| wonkipop |
Sep 11 2025, 04:50 PM
Post
#7
|
|
914 Guru Group: Members Posts: 5,032 Joined: 6-May 20 From: north antarctica Member No.: 24,231 Region Association: NineFourteenerVille
|
QUOTE(Montreal914 @ Sep 11 2025, 03:39 PM)  With the /6 being carburated, I would assume there is no return line and therefore one of the hole would be capped with this plug? (IMG:style_emoticons/default/confused24.gif) From the PET diagram, single line and your part (#19). Its description is: Stopper used on 1.8. but also referenced as being used on /6 on AA website. yes thats the stopper for a 1.8V (V being the twin carb euro 1.8). which makes sense that its maybe same part that came from earlier 6. also carb. though PET does not list it as 6 part anywhere i can find. but would not be first time PET is not entirely complete. |
|
|
|
| DennisV |
Sep 11 2025, 05:33 PM
Post
#8
|
|
Senior Member Group: Members Posts: 715 Joined: 8-August 20 From: Santa Rosa, CA Member No.: 24,575 Region Association: Northern California
|

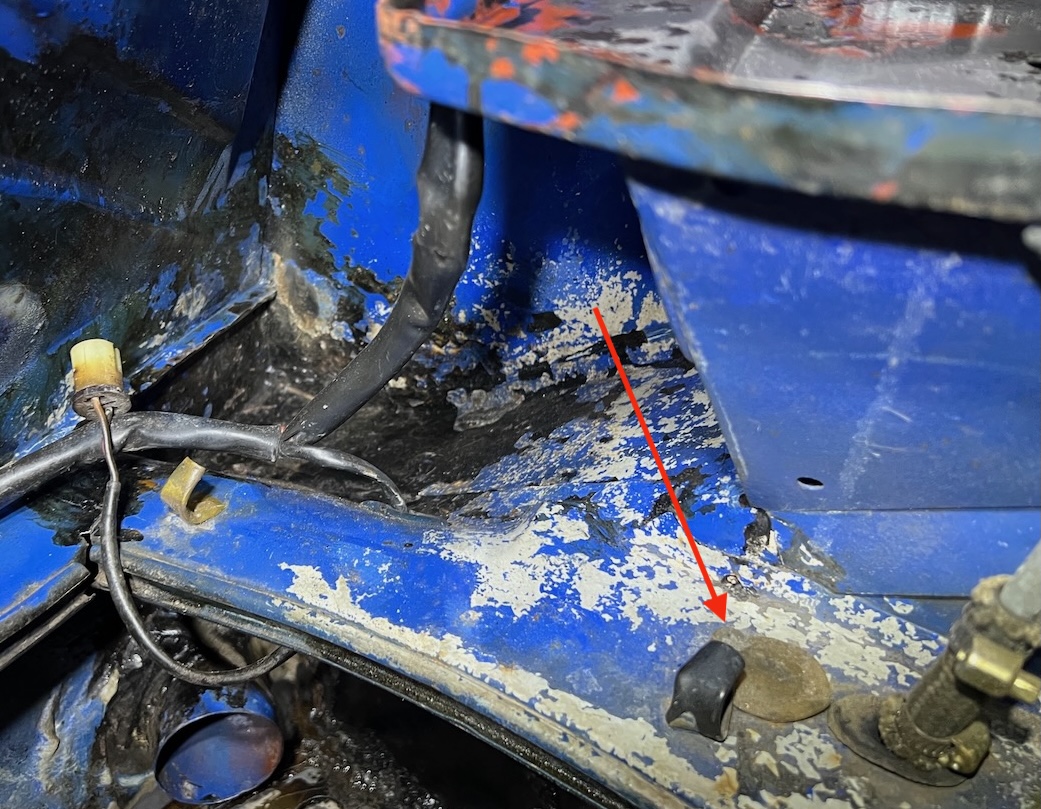

QUOTE(ctc911ctc @ Sep 11 2025, 12:30 PM) On the right side of the car engine compartment - 914-6 There are two oval holes for the 914-4 FI, one is plugged with this when it is a 914-6 engine. Is this an original part? Is this located down by the base of the battery tray? Our car has one plug and one grommet with a hole in the middle. Attached thumbnail(s)
|
|
|
|
| sbsix |
Sep 12 2025, 07:19 AM
Post
#9
|
|
only the lead dog enjoys a change in scenery... Group: Members Posts: 461 Joined: 10-January 12 From: Santa Barbara, CA Member No.: 13,990 Region Association: Southern California
|

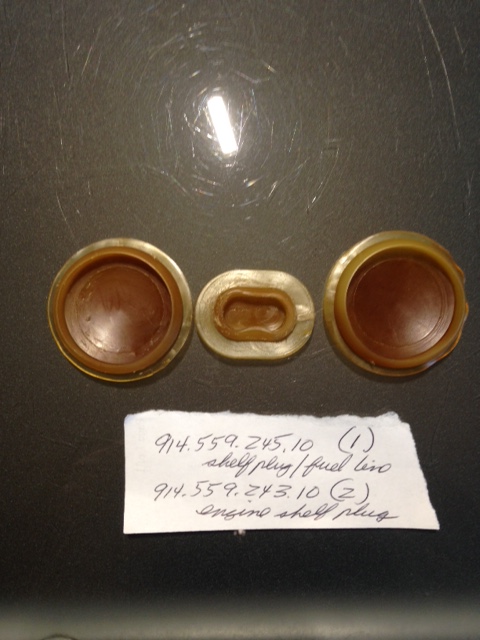

Parts for the three spots on the engine tin on a 914-6
|
|
|
|
| sbsix |
Sep 12 2025, 07:21 AM
Post
#10
|
|
only the lead dog enjoys a change in scenery... Group: Members Posts: 461 Joined: 10-January 12 From: Santa Barbara, CA Member No.: 13,990 Region Association: Southern California
|
 |
|
|
|
| sbsix |
Sep 12 2025, 07:26 AM
Post
#11
|
|
only the lead dog enjoys a change in scenery... Group: Members Posts: 461 Joined: 10-January 12 From: Santa Barbara, CA Member No.: 13,990 Region Association: Southern California
|
parts are NLA but last time I checked AA had replacements. These would be a great idea for 914 Rubber to make.
|
|
|
|
| dr914@autoatlanta.com |
Sep 12 2025, 10:33 AM
Post
#12
|
|
914 Guru Group: Members Posts: 8,207 Joined: 3-January 07 From: atlanta georgia Member No.: 7,418 Region Association: None |
yes for six only plugged the four cylinder fuel line return hole in the engine shelf. We had them made for awhile but our molder Jerry, died
QUOTE(ctc911ctc @ Sep 11 2025, 12:30 PM) On the right side of the car engine compartment - 914-6 There are two oval holes for the 914-4 FI, one is plugged with this when it is a 914-6 engine. Is this an original part? |
|
|
|
| rgalla9146 |
Sep 12 2025, 11:01 AM
Post
#13
|
|
Advanced Member Group: Members Posts: 4,805 Joined: 23-November 05 From: Paramus NJ Member No.: 5,176 Region Association: None
|
QUOTE(sbsix @ Sep 12 2025, 09:21 AM) This picture shows another often overlooked 914 6 part. Because the 6 has no rain tray on the engine lid there are no drain tubes to pass through the engine shelf, therefore it has the two round plugs pictured. Thank you for posting. |
|
|
|
|
